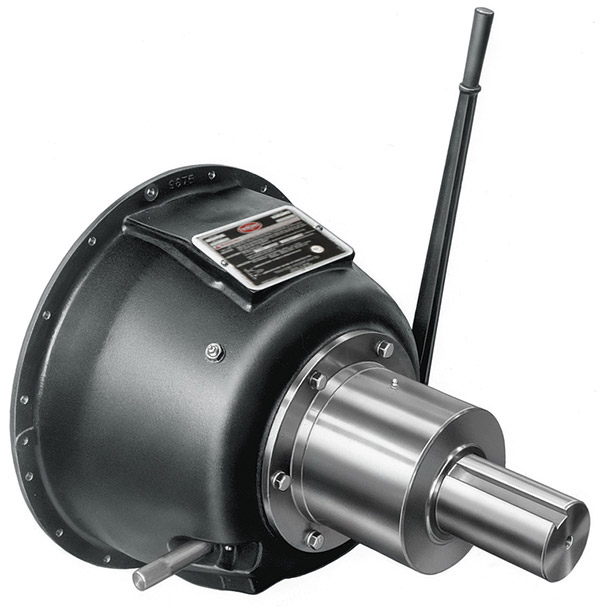

SP214IL/314IL

  • Optional sintered iron plates
  • Optional ball bearing throw out
  • No pilot bearing
  • Buit-in hex nut
  • Creates 25% higher torque capacity
  • Allows for more frequent engagements
  • Ease of installation
  • Eases adjustment verification

PTO Application Data Sheet (157k pdf)

SPECIFICATIONS

Model Number SAE Housing Max. Input Torque
Nm (lb-ft)
Maximum Safe Speed Weight
kg (lbs)
Organic Sintered
SP214IL1 1 2198 (1620) 2748 (2025) 3000 149 (328)
SP314IL1 3297 (2430) 4125 (3040) 186 (408)



DIMENSIONS

Publications:

Description Download
Product Bulletin PDF
Mechanical Power Take-Off's - Selection GuidePDF
Industrial CapabilitiesPDF

Installation Drawings:

Model Drawing Number Clutch Group SAE Housing Ouput Shaft Pilot Bearing Download
SP214P0SP214P001 2 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BRONZESAE #0Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP2124P0SP214P0042 plate, 14" PLATE: SPLIT SOLID MOLDED COLLAR: 3.5" BRONZESAE #0Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP2124P0SP214P0082 plate, 14" PLATE: SINTERED COLLAR: 3.5" BRONZESAE #0Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP214P1SP214P1012 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BRONZESAE #1Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP
SP214P1SP214P1032 plate, 14" PLATE: SINTERED COLLAR: 3.5" BRONZESAE #1Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP
SP214P1SP214P110 2 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.5" x 10"80mm ROLLER BRG (CARTRIDGE SEALED)PDF PDF DWG
SP214P1SP214P114 2 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP214P1SP214P115 2 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP214P1SP214P1202 plate, 14" PLATE: SINTERED COLLAR: 3.5" BALL BRGSAE #1Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP214P1SP214P1382 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BRONZESAE #1Ø3.5" x 8.5"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP214P1SP214P142 2 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø2.5" x 6.5"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP314P0SP314P0043 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BRONZESAE #0Ø3.93" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP314P0SP314P008 3 plate, 14" PLATE: SINTERED COLLAR: 3.5" BALL BRGSAE #0Ø3.93" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP314P1SP314P1013 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BRONZESAE #1Ø3.93" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP314P1SP314P1023 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BRONZESAE #1Ø3.93" x 10"100mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP314P1SP314P1093 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.93" x 10"100mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP314P1SP314P1123 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.93" x 10"80mm ROLLER BRG (CARTRIDGE SEALED)PDF PDF DWG
SP314P1SP314P1263 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.93" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP
SP314P1SP314P1303 plate, 14" PLATE: SINTERED COLLAR: 3.5" BALL BRGSAE #1Ø3.93" x 5"100mm BALL BRG (CARTRIDGE SEALED)PDF PDF
SP314P1SP314P1313 plate, 14" PLATE: SINTERED COLLAR: 3.5" BRONZESAE #1Ø3.93" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF
SP314P1SP314P1363 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.93" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP314P1SP314P1393 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.5" x 10"80mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP314IL1SP314P1083 plate, 14" PLATE: SOLID MOLDED COLLAR: 3.5" BALL BRGSAE #1Ø3.50" x7.0"LESS PILOT BRGPDF PDF DWG
SP314IL1SP314P1113 plate, 14" PLATE: SINTERED COLLAR: 3.5" BALL BRGSAE #1Ø3.50" x7.0"LESS PILOT BRGPDF PDF
SP314IL1SP314P1213 plate, 14" PLATE: SINTERED COLLAR: 3.5" BRONZESAE #1Ø3.93" x 10"80mm ROLLER BRG (CARTRIDGE SEALED)PDF
SP314IL1SP314P1253 plate, 14" PLATE: SINTERED COLLAR: 3.5" BRONZESAE #1Ø3.93" x 10"80mm ROLLER BRG (CARTRIDGE SEALED)PDF PDF
