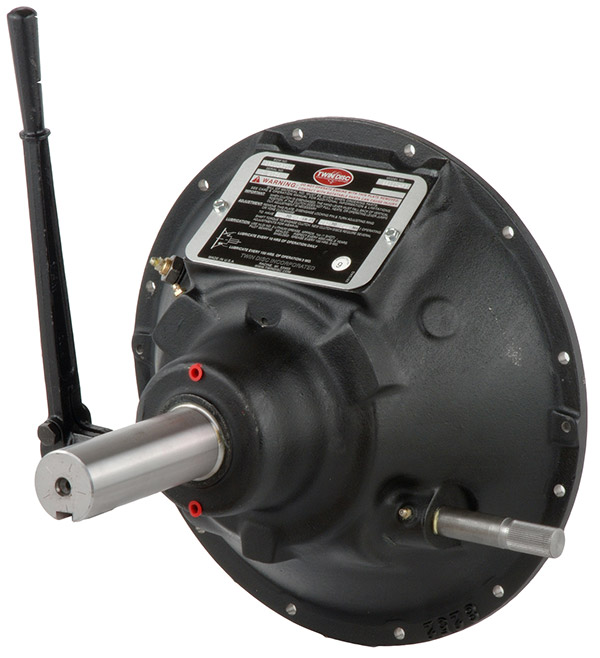

SP111P/211P

  • Available in sizes 11.5″ through 21.0″
  • Tapered roller main bearings
  • Optional sintered iron plates
  • Optional ball bearing throw out
  • Buit-in hex nut
  • Creates suitable application torque capacity
  • More suitable for side load applications
  • Allows for more frequent engagements
  • Creates 25% higher torque capacity
  • Eases adjustment verification

PTO Application Data Sheet (157k pdf)

SPECIFICATIONS – SP111P & SP211P

Model Number SAE Housing Max. Input Torque Nm (lb-ft) Maximum Safe Speed Weight kg (lbs)
Solid Plates Split Plates
Organic Sintered Cast
Drive Ring
Nodular
Drive Ring
Cast
Drive Ring
Nodular
Drive Ring
SP111P1, SP111P2, SP111P3 1, 2, 3 617 (455) 746 (550) 2850 3600 2200 3200 58 (129)
SP211P1, SP211P2, SP211P3 1235 (910) 1493 (1100) 3000 3000 79 (175)



DIMENSIONS

Publications:

Description Download
Product Bulletin PDF
Mechanical Power Take-Off's - Selection GuidePDF
Industrial CapabilitiesPDF

Installation Drawings:

Model Drawing Number Clutch Group SAE Housing Ouput Shaft Pilot Bearing Download
SP111HP1SP111P1011 plate, 11.5" PLATE: SPLIT SOLID MOLDED COLLAR: 2.0" BRONZESAE #1Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP1SP111P1031 plate, 11.5" PLATE: SINTERED COLLAR: 2.0" BRONZESAE #1Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP2SP111P2011 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.0" BRONZESAE #2Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP2SP111P2041 plate, 11.5" PLATE: SPLIT SOLID MOLDED COLLAR: 2.0" BRONZESAE #2Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP2SP111P2141 plate, 11.5" PLATE: SINTERED COLLAR: 2.0" BRONZESAE #2Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP111P2SP111P2051 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.0" BRONZESAE #2Ø2.25 x 5.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP3SP111P3011 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.0" BRONZESAE #3Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP3SP111P3031 plate, 11.5" PLATE: SPLIT SOLID MOLDED COLLAR: 2.0" BRONZESAE #3Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP3SP111P3061 plate, 11.5" PLATE: SINTERED COLLAR: 2.0" BRONZESAE #3Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP3SP111P3301 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.0" BALL BRGSAE #3Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP3SP111P3351 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.0" BALL BRGSAE #3Ø2.25 x 4.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP111HP3SP111P3401 plate, 11.5" PLATE: SPLIT SOLID MOLDED COLLAR: 2.0" BALL BRGSAE #3Ø2.25 x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP111P3SP111P3041 plate, 11.5" PLATE: SPLIT SOLID MOLDED COLLAR: 2.0" BRONZESAE #3Ø2.25 x 5.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP211HP1SP211P1012 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.5" BRONZESAE #1Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP2SP211P2012 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.5" BRONZESAE #2Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP2SP211P2032 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.5" BALL BRGSAE #2Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP2SP211P2062 plate, 11.5" PLATE: SINTERED COLLAR: 2.5" BALL BRGSAE #2Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP2SP211P2282 plate, 11.5" PLATE: SINTERED COLLAR: 2.5" BRONZESAE #2Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG
SP211HP3SP211P3012 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.5" BRONZESAE #3Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP3SP211P3022 plate, 11.5" PLATE: SINTERED COLLAR: 2.5" BRONZESAE #3Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP3SP211P3042 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.5" BALL BRGSAE #3Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP3SP211P3052 plate, 11.5" PLATE: SINTERED COLLAR: 2.5" BALL BRGSAE #3Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP3SP211P3202 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.5" BALL BRGSAE #3Ø2.5" x 4.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP3SP211P3222 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.5" BRONZESAE #3Ø2.5" x 6.5"72mm BALL BRG (CARTRIDGE SEALED)PDF PDF DWG STEP IGES
SP211HP3SP211P3242 plate, 11.5" PLATE: SOLID MOLDED COLLAR: 2.5" BRONZESAE #3Ø2.5" x 6.5"72mm ROLLER BRG (CARTRIDGE SEALED)PDF PDF DWG
