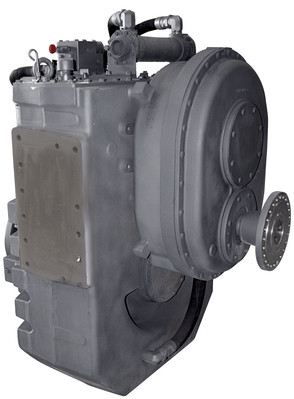

MGX-5600DR

Standard Equipment

  • Vertical offset, cast iron housing
  • Input flange for freestanding installation
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Mounted oil cooler for raw or fresh water cooling
  • Oil strainer and oil filter
  • Companion flange/bolt set

Options

  • Hydraulically operated internal shaft brake
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Output shaft driven trailing pump
  • Special companion flange/bolts set for shaft brake application
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
    • SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1187 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)
    • SAE J744 size 127-4, 38-4 (SAE “C-C”, 4-bolt, max. 1186 Nm)

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction Ratios Continuous Duty
:1 @ 1200 RPM @ 1600 RPM @ 1800 RPM
4.20, 6.02

1151 kW

(1543 hp)

1564 kW

(2097 hp)

1760 kW

(2360 hp)

6.56

1038 kW

(1392 hp)

1458 kW

(1955 hp)

1641 kW

(2201 hp)

7.01

964 kW

(1293 hp)

1352 kW

(1813 hp)

1566 kW

(2100 hp)

7.22

845 kW

(1133 hp)

1088 kW

(1459 hp)

1207 kW

(1619 hp)

* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 2100 rpm.

DIMENSIONS & WEIGHT

Vertical Offset
C 225 mm (8.86”)
S 540 mm (21.26”)
F 1286 mm (50.64”)
L 525 mm (20.67”)
R 525 mm (20.67”)
Weight 3465 kg *

* dry weight, including input flange

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.
