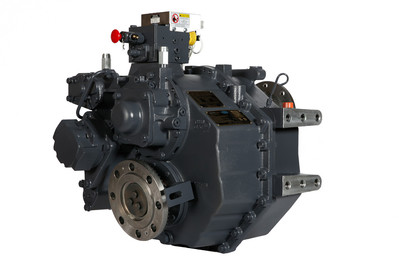

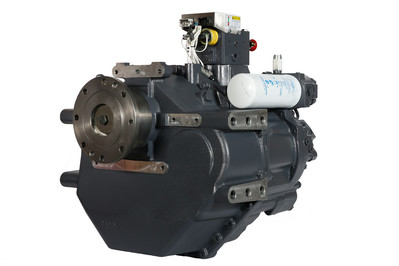

MGX-5136A

Standard Equipment

  • Vertical offset, aluminum housing
  • 10° down angle on output shaft
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Oil strainer and oil filter

Options

  • SAE J617 housing no. 1
  • SAE J617 housing no. 0
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 18” flywheel (SAE J620 size 460)
  • Input flange for freestanding installation
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler with thermostatic bypass valve
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
    • SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt, max. 197 Nm)
    • SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 337 Nm)
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction Ratios Pleasure Craft Light Duty Intermediate Duty Medium Duty Continuous Duty
:1 @ 2300 RPM @ 2300 RPM @ 2100 RPM @ 1800 RPM @ 1800 RPM

1.16, 1.25, 1.53

1.79, 2.00

895 kW

(1200 hp)

746 kW

(1000 hp)

560 kW

(751 hp)

485 kW

(650 hp)

445 kW

(597 hp)

2.52

847 kW

(1136 hp)

716 kW

(960 hp)

* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 2800 rpm.

DIMENSIONS & WEIGHT

Vertical Offset Down Angle
C 232 mm (9.12”)
S 159 mm (6.26”)
F 557 mm (21.93”)
L 305 mm (12.01”)
R 305 mm (12.01”)
A 10°
Weight 300 kg *

* dry weight, including SAE #1 housing and SAE 355 flexible coupling

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.

Publications:

Description Download
Product BulletinPDF
Marine Product GuidePDF
Marine CapabilitiesPDF
QuickShift® BrochurePDF

Installation Drawings:

Drawing Number Input Connection Control Valve Companion Flange Heat Exchanger PTO Notes Download
1027761SAE #1 / 14"mech. (MG-5136A)PDF DWG SLDPRT STEP IGES
1027607SAE #1 / 14"electric, EC050PDF DWG SLDPRT STEP IGES
1027607ASAE #1 / 14"electricYesSAE B-B (live)PDF DWG SLDPRT STEP IGES
1027607BSAE #1 / 14"electric, EC050SAE C (live)PDF DWG SLDPRT STEP IGES
1027607CFreestandingelectric, EC300 interfaceYesSAE C (live)PDF DWG SLDPRT STEP IGES

Accessory Drawings:

Drawing Number Description Download
1025600Assembly DrawingPDF
1027557Assembly Drawing (MG-5136A)PDF
B3504BNMass Elastic SystemPDF
1026782AInput connection: SAE 1 & Vulastik L-3011S (14")PDF
PX13289Input connection: SAE 1 & 'Centaflex CF-R-318-HR (14")PDF
PX1030235Input connection: SAE 1 (reduced length) & 'Centaflex CF-R-318-HR (14")PDF
PX13476Input connection: SAE 0 & Vulastik L-3011S (14")PDF
PX13477Input connection: SAE 0 & 'Centaflex CF-R-318-HR (14")PDF
PX13478Input connection: SAE 0 & Vulastik L-3011S (18")PDF
PX13479Input connection: SAE 0 & 'Centaflex CF-R-318-HR (18")PDF
PX1030217Input connection: SAE 0 (reduced length) & 'Centaflex CF-R-318-HR (18")PDF
1026782Input connection: Input hub (O.D. 225 mm, 8 holes ø 16.2 mm)PDF
1025674Electric control valve with EC050 module (without trolling)PDF
1025673Electric control valve with EC050 module (without trolling)PDF
1025691Electric control valve with single point connection for EC300 control systemPDF
1027558Mechanical control valve without trolling valve (MG-5136A)PDF
1027559Mechanical control valve with trolling valve (MG-5136A)PDF
1025672PTO housing / heat exchanger bracketPDF
1026819Live PTO size SAE CPDF
1027574Live PTO size SAE B-BPDF
1029865Live PTO size SAE BPDF
PX1030295Live PTO size SAE APDF
1026808AHeat exchanger with thermostatic bypass valvePDF
PX11471Companion flangePDF
1016428AVMounting bracketsPDF
