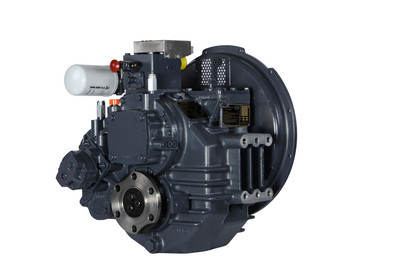

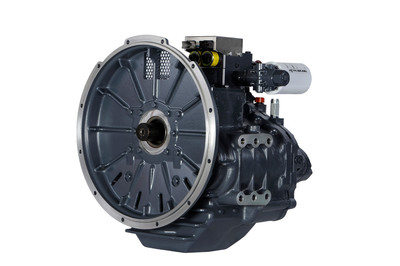

MGX-5095SC

Standard Equipment

  • Vertical offset, aluminum housing
  • Electric GP-valve with manual override
  • EC050 Profile module – interface for engagement signals
  • Oil strainer and oil filter

Options

  • SAE J617 housing no. 1
  • SAE J617 housing no. 2
  • Flexible coupling for 14” flywheel (SAE J620 size 355)
  • Flexible coupling for 11.5” flywheel (SAE J620 size 290)
  • Input flange for freestanding installation
  • Mechanical control valve
  • EC050 E-Troll module – interface for engagement & trolling signals
  • Harness with single point interface to Twin Disc EC300 control system
  • Oil cooler with thermostatic bypass valve
  • Companion flange/ bolts set
  • Monitoring devices to customer’s specification
  • Mounting brackets
  • Live PTO:
    • SAE J744 size 82-2, 16-4 (SAE “A”, 2-bolt, max. 58 Nm)
    • SAE J744 size 101-2, 22-4 (SAE “B”, 2-bolt, max. 209 Nm)
    • SAE J744 size 101-2, 25-4 (SAE “B-B”, 2-bolt, max. 338 Nm)
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 592 Nm)
  • Hydraulic clutchable PTO:
    • SAE J744 size 127-4, 32-4 (SAE “C”, 4-bolt, max. 600 Nm)

INPUT RATINGS – KILOWATTS (KW) (HORSEPOWER (HP))*

For service classification definitions and important notes refer to the Twin Disc Marine Product Guide or contact Twin Disc directly.

Reduction Ratios Pleasure Craft Light Duty Intermediate Duty Medium Duty Continuous Duty
:1 @ 2300 RPM @ 2300 RPM @ 2100 RPM @ 1800 RPM @ 1800 RPM

1.15, 1.27, 1.47,

1.71, 2.00, 2.46

597 KW

(800 hp)

560 kW

(751 hp)

410 kW

(550 hp)

336 kW

(451 hp)

298 kW

(400 hp)

2.95

560 KW

(751 hp)

522 kW

(700 hp)

380 kW

(510 hp)

319 kW

(428 hp)

* Ratings shown for use with standard right hand rotation engines. The maximum allowable rated engine speed is 3000 rpm.

DIMENSIONS & WEIGHT

Vertical Offset
C 190 mm (7.48”)
S 156 mm (6.14”)
F 432 mm (17.00”)
L 265 mm (10.43”)
R 265 mm (10.43”)
Weight 193 kg *

* dry weight, including SAE #1 housing and SAE 355 flexible coupling

Specifications subject to change without prior notice in the interest of continual product improvement. Contact your local Twin Disc representative for engineering specifications, Survey Society Approvals and Classifications.

Publications:

Description Download
Product BulletinPDF
Marine Product GuidePDF
Marine CapabilitiesPDF
QuickShift® BrochurePDF

Installation Drawings:

Drawing Number Input Connection Control Valve Companion Flange Heat Exchanger PTO Notes Download
PX13215SAE #1 / 14"mech. + troll. (MG-5096SC)YesYesSAE C (live)PDF DWG SLDPRT
PX13023SAE #1 / 14"electric, EC050YesPDF DWG SLDPRT
PX13023ASAE #0 / 18"electric, EC050YesYesSAE C (live)PDF DWG SLDPRT
PX13023CFreestandingelectric, EC050PDF DWG SLDPRT STEP IGES
